Dough Rounders: Matching the Machine to Your Production Needs
Rounding, technically referred to as dough rounding or pre-shaping, is one of the most complex and frequently underestimated steps in an industrial bread line. Beyond giving the dough piece a spherical geometry, its primary objective is the controlled creation of surface tension: a continuous, smooth, elastic outer skin formed by the same gluten network that has been stretched and aligned concentrically over itself.
This viscoelastic membrane acts as a semi-permeable barrier. Its function is to retain the gases, mainly carbon dioxide and ethanol vapor, produced by yeast metabolism during the bench rest and final proofing phases that follow. Insufficient surface tension leads to lateral collapse and dense crumb; excessive mechanical stress tears the skin, causes premature degassing, and results in irreversible structural failure before the oven.
This process also serves three additional functions:
Partial degassing and redistribution of yeast cells for a more isotropic fermentation rate.
Restructuring of gluten chains disrupted by the divider, restoring network integrity.
Directing oven spring upward, maximizing the vertical expansion known as oven spring during the early baking phase.
The industrial challenge is the diversity of formulations now required by the market. Hydration levels ranging from 45% in standard white bread to 90% in artisan-style ciabattas, combined with variable fermentation times and the use of sourdough cultures, demand completely different mechanical stress profiles.
Applying the wrong rounding technology for a given dough rheology may result in sticky masses that adhere to contact surfaces, triggering line stops and reducing Overall Equipment Effectiveness (OEE).
Recommended Reading:
Traditional Fixed-Path Rounding Technologies
Traditional rounding machinery is based on the concept of kinematic confinement: the application of consistent force to move a dough piece through a physically predetermined and restrictive space, using a combination of linear and rotational surfaces. The critical variables include belt or cone rotation speed, raceway gap, track length, angle of incidence, and surface friction coefficients.
Five distinct mechanical typologies have shaped the industry for decades, each suited to a different dough profile and production objective.

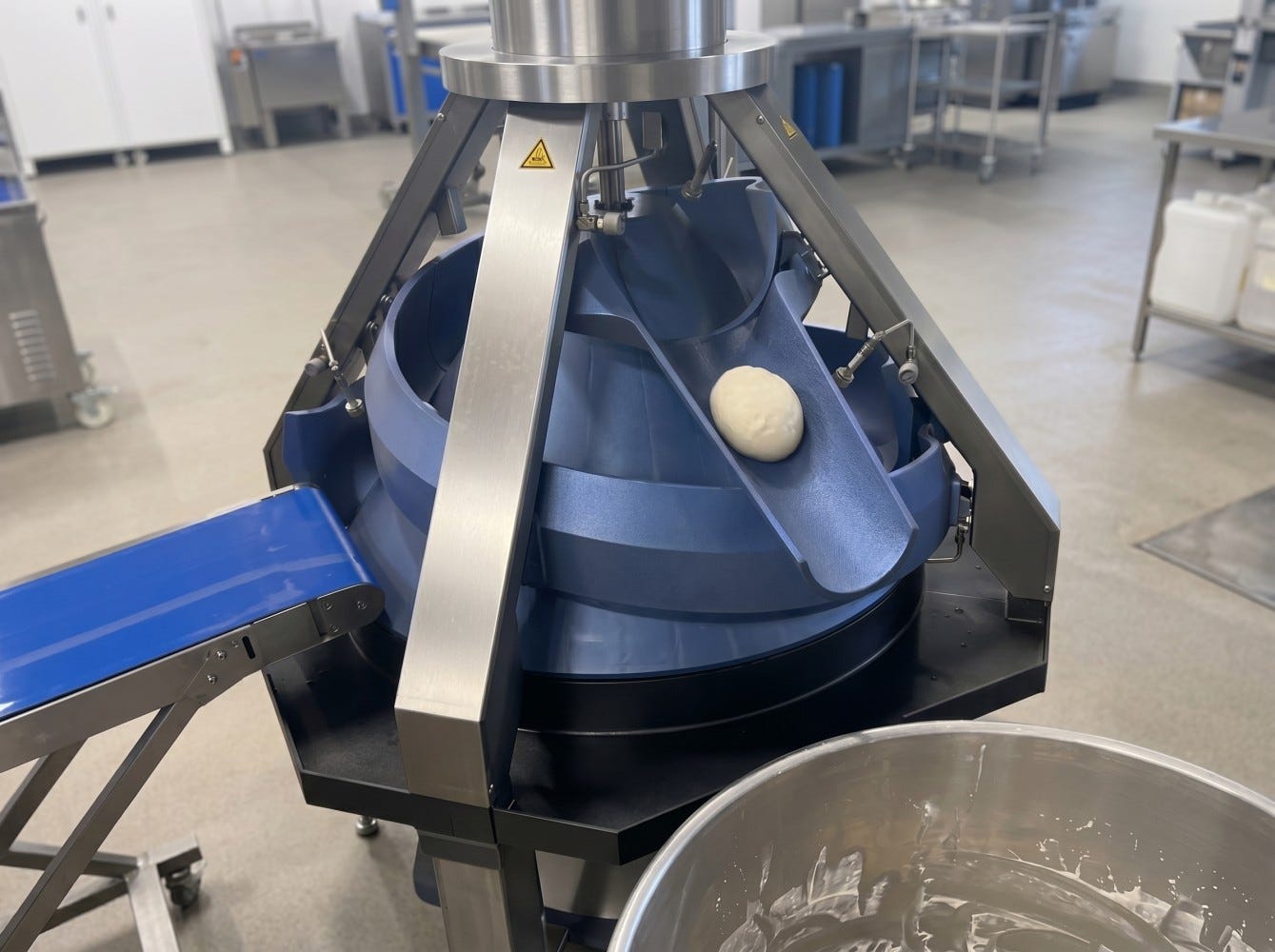

Conical Rounders
The conical rounder is the industrial standard for tin bread, white bread, and standard burger buns. Its core design uses a wide-base cone mounted on a vertical rotating shaft, surrounded by a concave spiral track fixed to the machine frame.
The dough piece rises along the spiral through the friction differential between the rotating cone and the stationary track, covering up to 4.7 meters of travel path on advanced models.
This configuration produces high friction and high mechanical stress, making it optimal for rigid or low-to-medium hydration doughs, typically below 65% water content. Key operational considerations include:
Output capacity may reach 4,500 pieces per hour on advanced industrial models such as the CR series manufactured by WP Haton B.V.
The cone surface often requires grooved patterns or PTFE (Polytetrafluoroethylene/Teflon) coatings to prevent the dough from slipping rather than ascending.
Automated flour dusters are frequently integrated, though excess dusting may create dry inclusions in the final crumb, a defect that modern vision systems will reject.
For soft or highly hydrated doughs, this technology is not recommended: the shear forces may destroy gas cells cultivated during long fermentation and push free water to the dough surface.

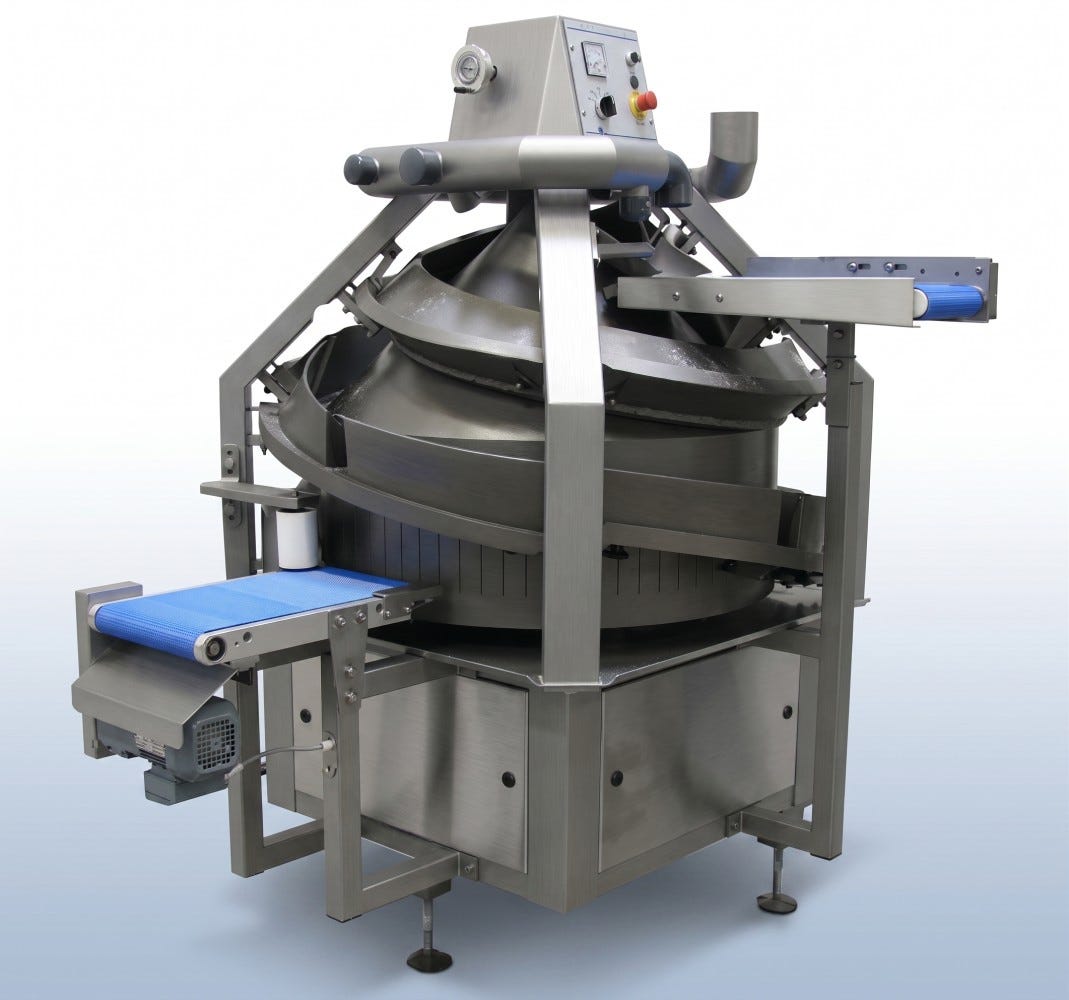

Cylindrical Rounders
The cylindrical rounder is the direct evolution of the conical design. By replacing the cone with a cylindrical or hybrid drum (as in the Tallround model by Royal Kaak), the machine achieves a significantly longer vertical travel path for the same floor footprint. This extended track distributes mechanical stress over a longer time window, reducing peak shear forces.
The primary benefit of the cylindrical geometry is seam quality: the longer rounding path ensures a fully continuous and hermetic bottom closure. An improperly sealed seam could allow gases to escape asymmetrically during oven spring, producing crust ruptures at the base. Notable operational features include:
Output rates may reach up to 10,000 pieces per hour on high-performance models.
Hot and cold air blowers directed at the track create a dry micro-film on the dough surface, acting as a natural lubricant without excessive flour dusting.
Suitable for medium-hydration specialty breads and pizza bases.

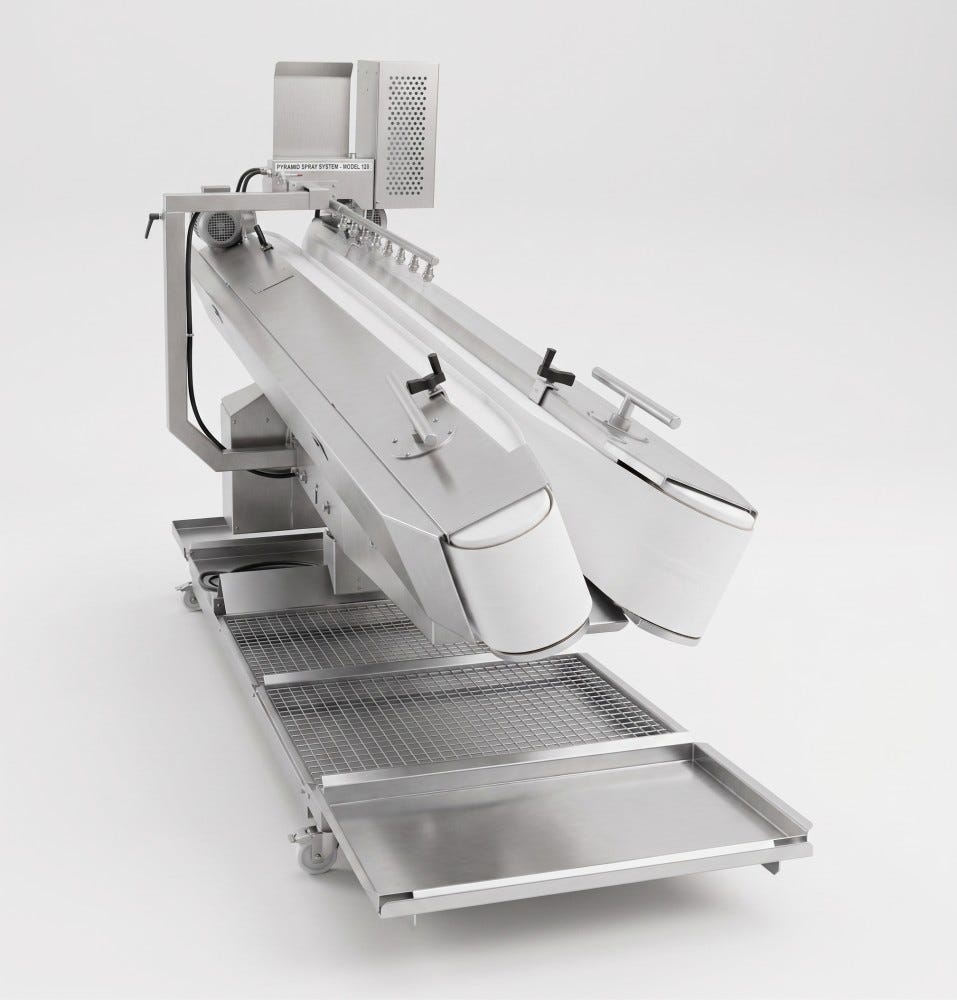

V-Belt Rounders
Consumer demand for clean-label products, long-fermented breads, sourdough, and high-hydration doughs pushed the industry toward gentler mechanical handling. The V-belt rounder, classified as a low-stress system, eliminates rigid stationary tracks entirely. Two longitudinal belts, typically felt or synthetic-coated, are arranged in a V-shaped channel. Each belt is driven independently by a variable-frequency motor.
The differential speed between the two belts induces a tangential rotation in the dough piece without compression. This approach could preserve the open cell structure formed by the yeast, making it the only traditional machine viable for doughs from 65% up to 90% hydration. Key operational data:
Consistent industrial output of 1,800 to 2,400 pieces per hour across brands such as Bongard, Royal Kaak, and Naegele Inc. Bakery Systems .
Manual flywheel adjustments allow accommodation of pieces ranging from 70-gram rolls to 2.2 kg sourdough loaves.
Critical for artisan-style industrial lines and any product where alveoli preservation is a quality requirement.
Standard stainless steel construction with dough and flour collection trays ensures adequate sanitation for high-viscosity product handling.

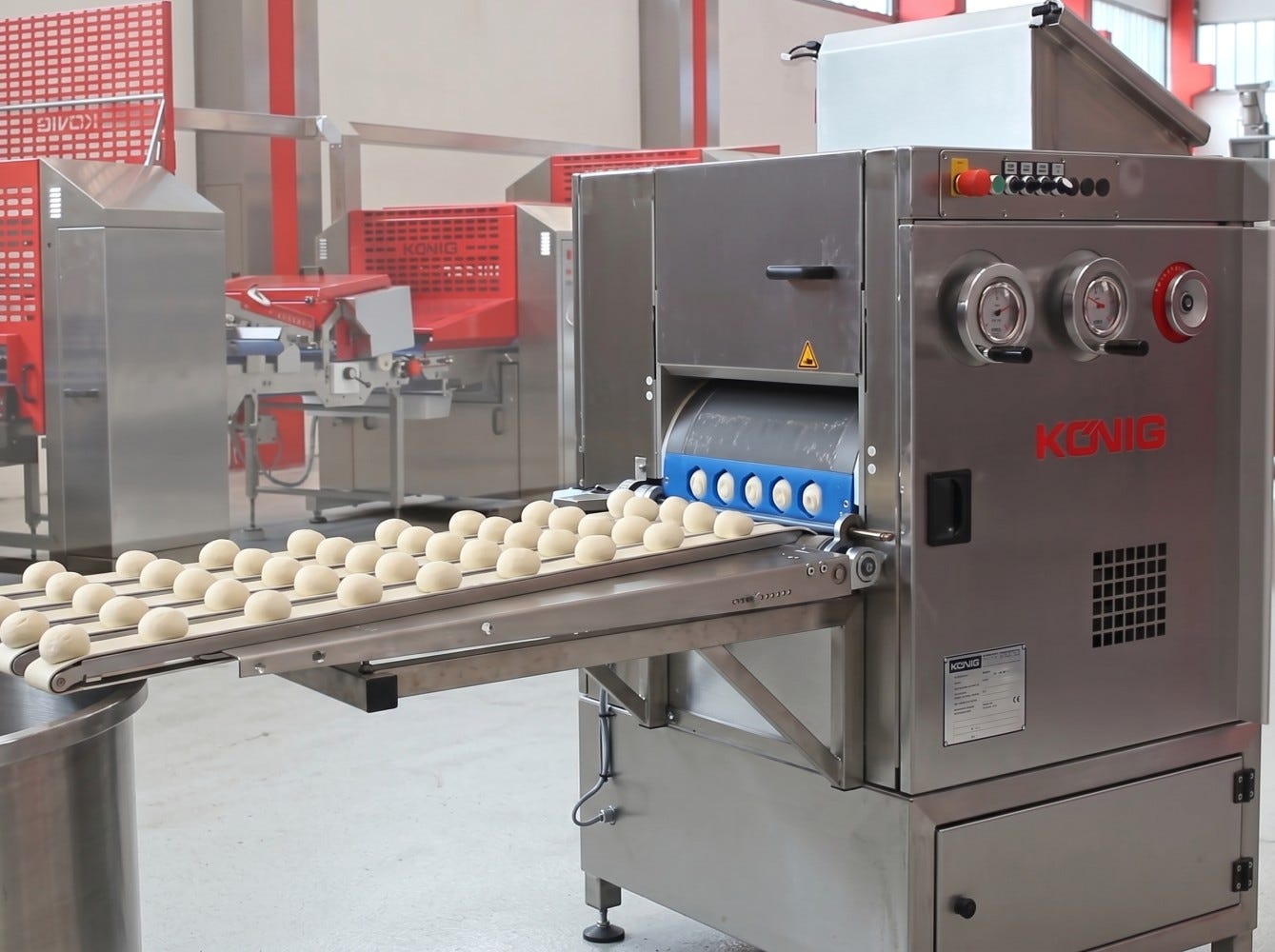

Drum and Pocket Rounders
When the plant strategy centers on high-volume uniform production of burger buns, hot dog rolls, pre-frozen pizza bases, or industrial donuts, the metric that overrides all others is volumetric consistency at extreme speed. Drum and pocket rounders, also known as continuous divider-rounders, integrate the division and rounding stages into a single compact mechanical block.
Dough is fed from a bulk hopper into a volumetric chamber, where pneumatic or vacuum-assisted systems portion it into small cylindrical pockets on a rotating drum. Actuators then induce a vigorous oscillatory circular motion within the confined space, achieving spherical geometry in fractions of a second. Advanced vacuum-assisted division systems by @WP Bakery Group, for example, allow excess air to escape during extrusion, reducing compression force and providing a surprisingly gentle treatment despite high throughput.
Production volumes are the defining feature of this technology:
Flagship high-capacity systems like the Koenig Rex series operate with up to 14 rows, achieving a massive output of up to 50,400 pieces per hour for lightweight formats (22 to 180 grams).
Standard drum systems with 12 pockets operating at 3,000 cycles per hour per piston may yield up to 36,000 pieces per hour.
Weight range is restricted to the pocket volume, making this technology unsuitable for artisan formats. Geometric consistency is non-negotiable for downstream automated packaging and slicing lines.
Recommended Reading:
Eccentric and Bar Rounders
After a bench rest phase in overhead proofers, enzymatic and yeast activity re-inflates the gluten network and weakens its shear resistance. Applying conical friction at this point would destroy the mature alveolar structure. The eccentric rounder addresses this constraint by simulating the biomechanical gesture of a skilled baker’s cupped hand.
The dough piece moves on a flat conveyor belt. Above it, a structure of angled bars, guide channels, or inverted cups performs a circular oscillatory motion driven by an off-center axis. The combined vector of linear base movement and overhead vibration recreates the artisan hand-shaping technique with minimal secondary friction. Performance highlights:
Handles dough weights from 200g to 4,000g and hydration levels up to 85% without tearing. European models achieve 1,800 pieces per hour with optional oil lubrication systems for hyper-sticky doughs.
For their artisan lines, Koenig’s Ceres 2.2 zero-stress dough sheet system utilizes integrated eccentric (or optional V-belt) rounders to process highly hydrated, long-fermented doughs (up to 82% hydration).
Operating at 1,500 pieces per hour for formats up to 2 kg, it preserves the delicate open crumb structure that their high-speed volumetric drum rounders would otherwise destroy.
Fast diameter format adjustment makes this machine ideal for multi-product lines handling continuous SKU rotation in pastry and pizza segments.
The Technological Frontier: Robotic Rounding Systems
Despite advances in tribological coatings such as nano-ceramic alloys and multi-layer fluorocarbon polymer depositions that prevent adhesion without altering the seam closure, fixed-path technologies face a structural limitation: hard physical components restrict the operational spectrum. Changing formulations may require significant downtime to reconfigure hardware. Robotic rounding systems were developed to eliminate this bottleneck.
Recommended Reading:
Zero-Stress Kinematics with End-of-Arm Tooling (EOAT)

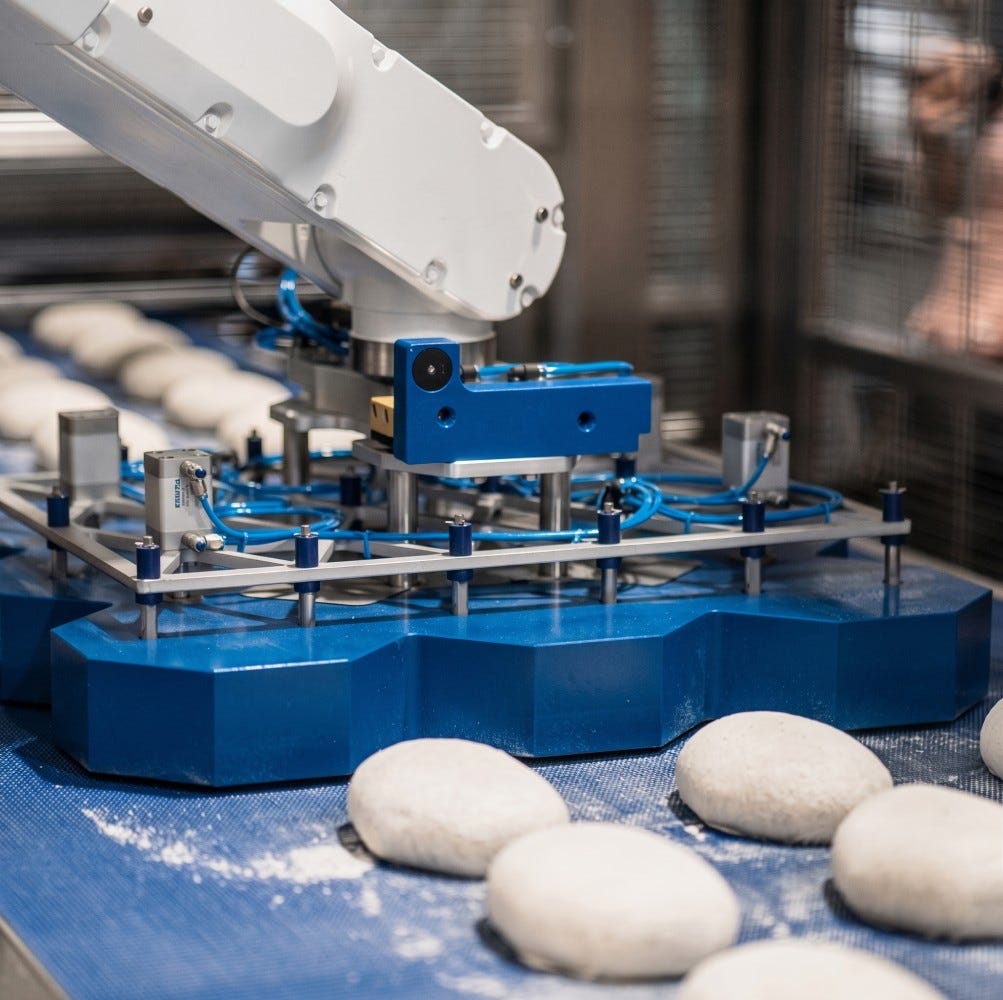

The leading example of this paradigm shift is the RONDObot by Swiss manufacturer RONDO, alongside systems such as the Radini bread processing module developed by Rademaker BV. Instead of dragging dough through meters of spiral tunnels, these installations use fast kinematic robotic arms, frequently in Delta or multi-axis configurations, with an interchangeable tool mounted at the terminal point.
For rounding, the End-of-Arm Tooling takes the form of an inverted cup. When a dough piece, cut stress-free by a traveling guillotine, advances on the conveyor, the robot descends its tool with micrometric precision and executes a multi-phase rounding process that simulates artisan hand-shaping. The PLC controls four kinetic variables in real time:
Eccentric radius of cup rotation.
Angular rotation speed.
Vertical push pressure.
Dwell time on the dough piece.
The transformative operational impact is the instant software changeover. Moving from a firm 100-gram burger bun to an 800-gram rustic sourdough loaf no longer requires stopping the line to reconfigure V-barriers, swap heavy drums, or interrupt dough supply. A new recipe is selected, the robot instantly adapts its eccentric cycle, and an automatic tool-changing system swaps the cup size in seconds without human intervention.
Output capacity may range from 1,100 to 1,800 kg per hour per module, scalable to 7,200 pieces per hour for 150-gram formats using double or triple rounder configurations.

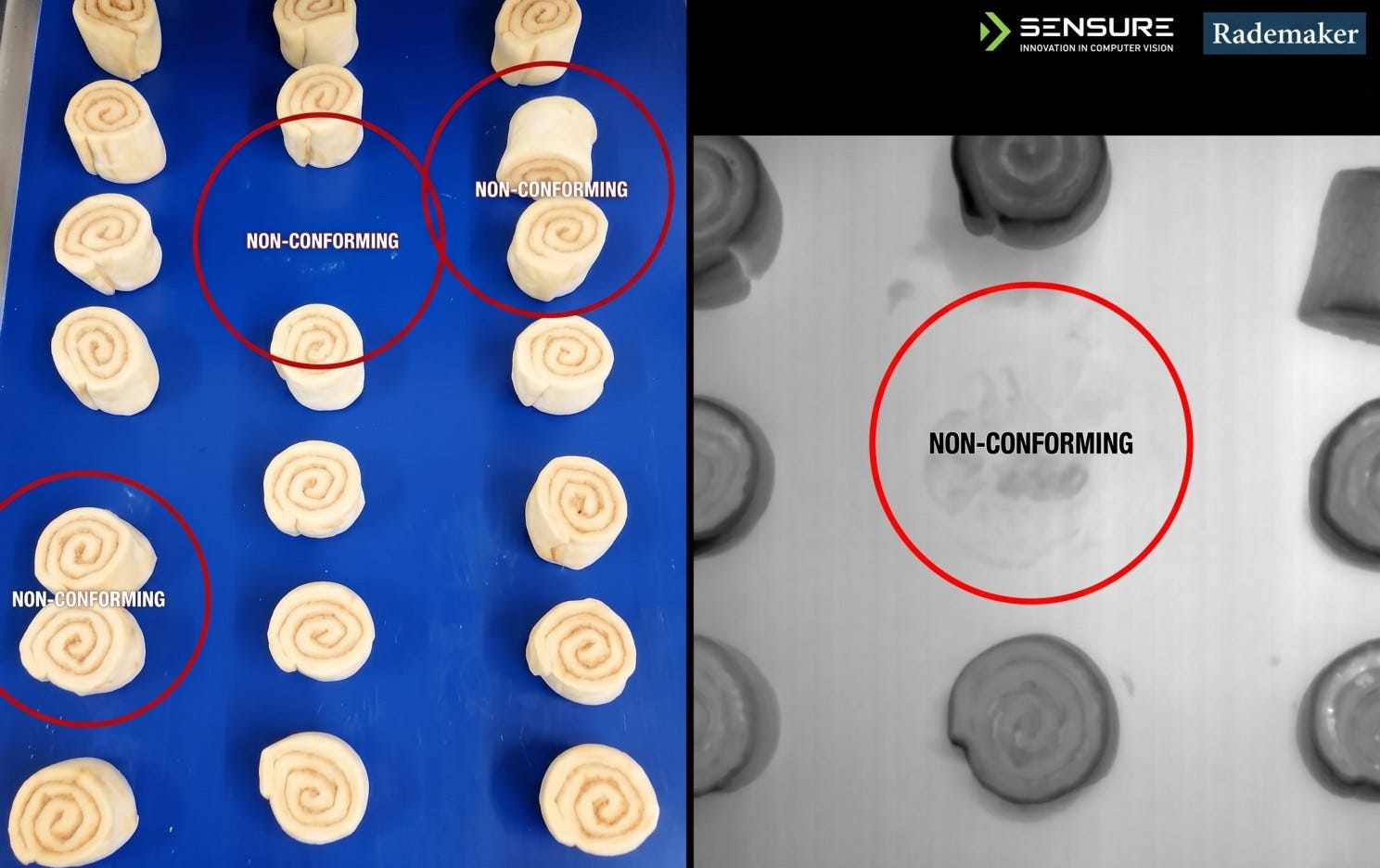

3D Computer Vision and Predictive Quality Telemetry
Robotic manipulators acting on amorphous biological material in constant motion require absolute positioning systems. Leaders such as Rademaker and Royal Kaak integrate arrays of cameras and lasers under 3D vision protocols upstream of the rounding station. The sensor matrix scans the moving dough surface and, through self-learning algorithmic software platforms such as Rademaker BV ‘s SENSURE environment, builds a topographic profile in milliseconds that determines:
Exact position and orientation of the dough piece on the belt.
Volume and surface area of the piece.
Inferred density and fermentation degree through reflectometric measurements
If the software detects an irregularity, the robot’s eccentric trajectory compensates to guarantee final sphericity. Any piece falling outside volumetric tolerance margins is automatically rejected or bypassed by pneumatic systems without interrupting the line. This aborts the processing of defective units before they consume baking energy and packaging materials downstream.
